If your order consists of multiple panels, please label the panels in the templates A, B, C etc. in a left to right order.
Make all measurements in millimetres, not centimetres, meters, inches or feet.
When entering the measurements into this diagram, please state the exact measurements that you wish the panel to be cut. Remember to deduct any allowances required for the expansion gaps as detailed in the measuring guide.
Be sure to read the splashbacks measuring guide and installation guide.
Click on the image below to download the template.
L Shaped
Reverse L
Rectangle
T Shaped
U Shaped

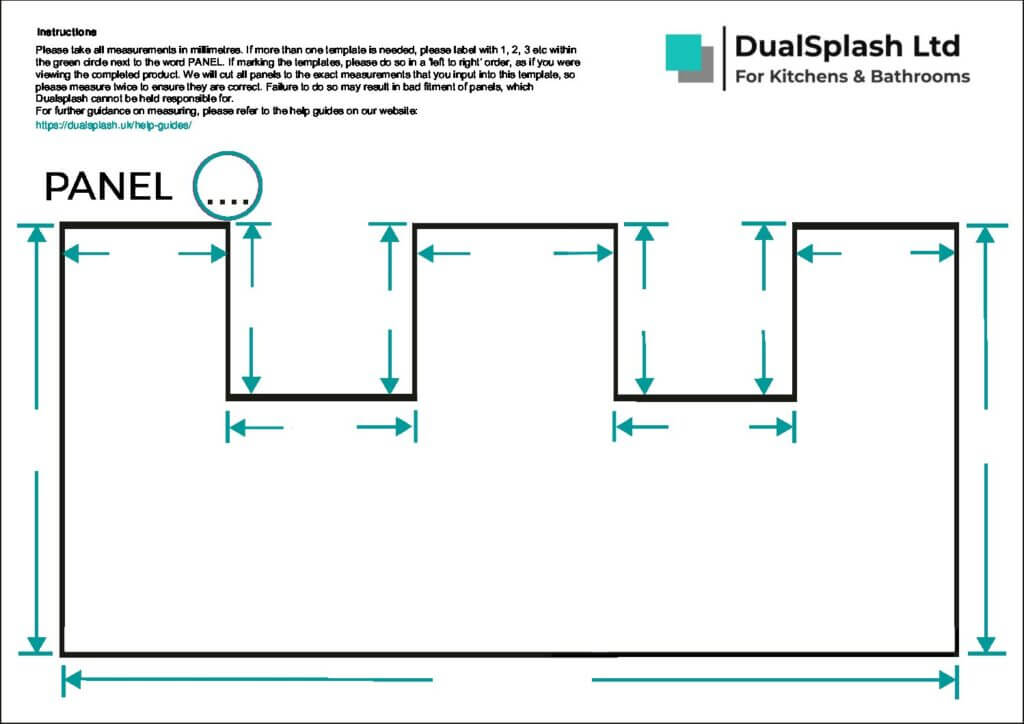

W Shaped
